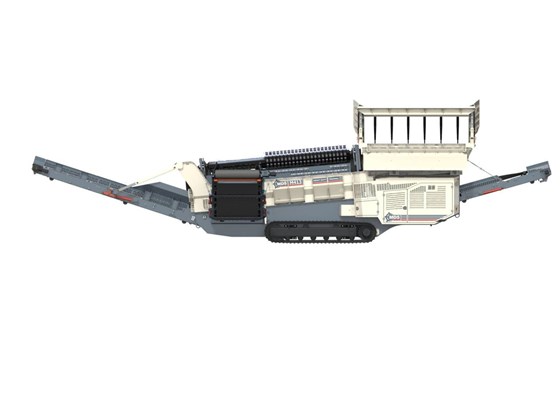

The MDS M412 mobile track trommel, available from Tricon Equipment, can be fitted with different types of drum and screen sizes
The Terex MDS M412 mobile track trommel – offered by Tricon Equipment – is designed to handle a diverse array of materials.
Tricon says it is particularly well-suited for quarrying, mining and handling construction and demolition waste, as well as recycling applications.
A key feature of the M412 is its ability to be equipped with different types of drums and screen sizes. This flexibility ensures the trommel can be tailored to the requirements of specific applications.
Two drum configurations are offered on the M412 – a drum frame with changeable screens or a fully welded drum.
Tricon recommends the drum frame with changeable screens for free-flowing or abrasive applications, offering the flexibility to easily change screen sizes as needed.
The fully welded drum is designed for handling dirty material and is compatible with drum cleaners, which keep the drum openings clear even in the harshest conditions.
The fully welded drum options come in various sizes, including 75mm (3”), 100mm (4”), 125mm (5”), and 150mm (6”), providing further customisation options based on the material requirements. The drum cleaners are specifically engineered to maintain clear drum openings, ensuring uninterrupted operation and maximum productivity.
Capable of screening rocks as large as 800mm (32”), Tricon says it is a feat unmatched by any other mobile screen on the market.
The trommel’s heavy-duty rotating drum offers a unique cleaning mechanism, Tricon adds. As materials tumble and scrub against each other and the drum walls, they undergo a thorough cleaning process, resulting in a much cleaner output product.
This mechanism is particularly effective in handling clay-bound rock and materials mixed with other sticky substances, ensuring a consistent and high-quality output.
Weighing 21.5 tonnes and equipped with a Cat 2.2 50kW (67hp) engine, the M412 can produce up to 300 tonnes per hour.
As a highly mobile machine, it comes complete with fold-out stockpiling conveyors, making it easy to move around a quarry or from one site to another.
This ensures that the M412 can be quickly deployed to different locations, maximising its utility across various projects.
Tricon Equipment also stocks the M413, M515 and M518R trommels.
To learn more about the Terex MDS Tracked Trommel range available at Tricon, visit www.triconequipment.com.au or call 1300 859 885.
