The Tigercat 6040 carbonizer is revolutionising the processing of waste wood in vegetation management
In January, Onetrak showcased the Tigercat 6040 carbonizer at a demo day in Queensland – highlighting a waste wood management system that reduces material by 90 per cent to produce high quality organic carbon.
Tigercat says the 6040 is one of the most environmentally friendly wood debris reduction and conversion systems available on the market that converts unwanted logging and agriculture residue into a useful, high grade organic carbon that can be left onsite as a soil additive or marketed for many different commercial uses.
The process captures 20 to 30 per cent of the available carbon in the feedstock and sequesters it for thousands of years, furthering the goals of greenhouse gas (GHG) reduction. The innovative conversion process operates at high throughput levels and produces very low emissions because the gasses are combusted in the controlled combustion zone.

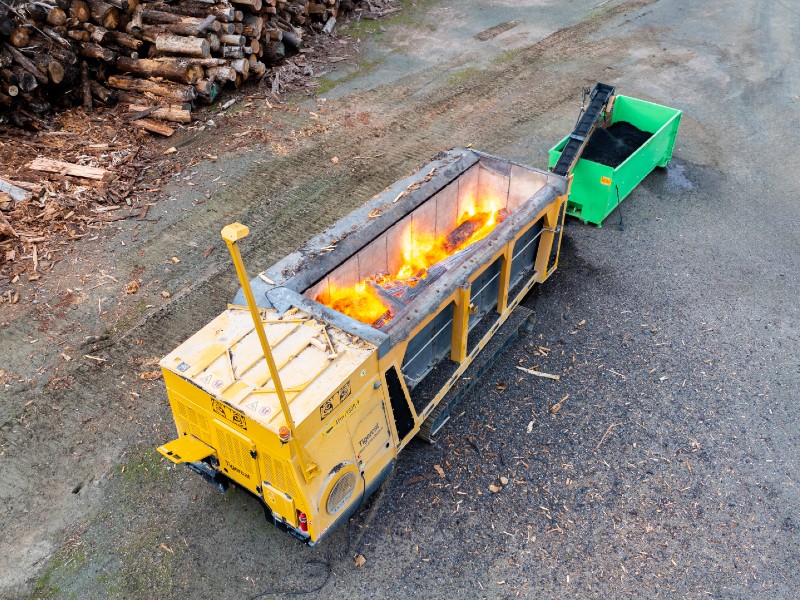

Tigercat has purposefully designed the machine to allow for modular replacement over time. For instance, the grates in the carbonizing chamber are now made up of seven different sections that can be rotated 180 degrees to balance wear and extend life. Individual sections can be replaced as required.
The undercarriage, auger trough and conveyor system are all bolt-on sections to the main carbonizing chamber frame. Everything can be separated for service and replacement if required. The modular bolt-on design also allows for differing expansion rates of these major components.
The replaceable thermal-ceramic panel seal plate design has been improved, compared to the previous model, reducing panel wear. The composition of the panels has been altered to decrease back-face temperature while storing and utilising more of the heat energy produced during the carbonizing process. This provides a more stable and sustained temperature within the carbonizing chamber. The result is increased efficiency, higher infeed rates, reduced emissions and a greater yield of higher quality organic carbon.
The auger trough is designed for minimal air leakage, assisting with under-air efficiency, further defining the secondary combustion zone, while reducing hotspots that could form from an inefficient base pressure or vacuum.
Unlike the previous model, the 6050, the auger trough – where the quenching process takes place – is entirely sealed. Once the organic carbon drops through the grates, it is fully quenched by the water bath.
An onboard hydraulic water supply pump and integrated automatic water level control system reduces water consumption by about 50 per cent compared with the 6050. Automated water fill, level control, and water retention provides the operator a window of time to replenish the water supply if required.

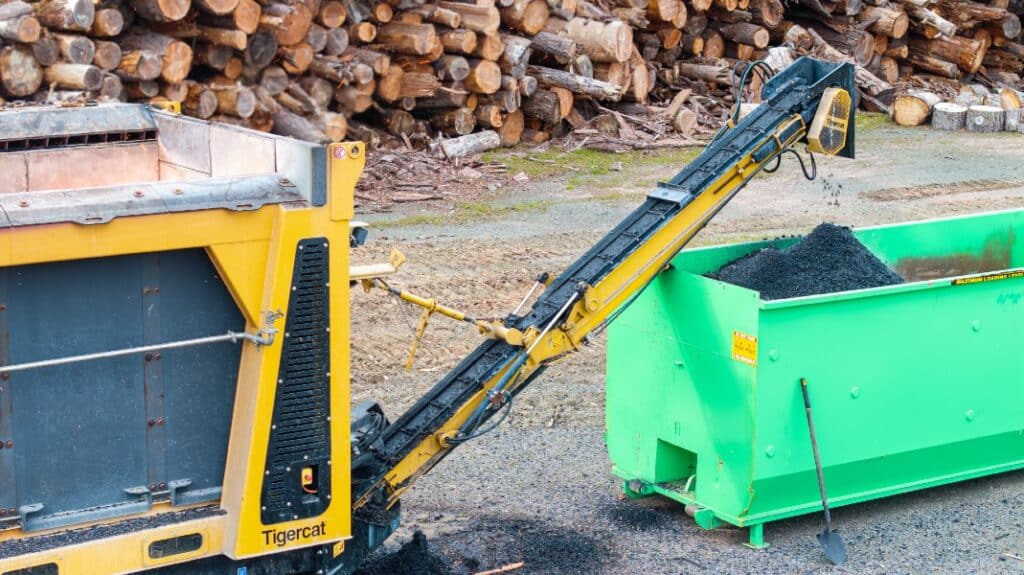

The adjustable conveyor simplifies handling and management of the organic carbon product. It pivots 105 degrees from side to side and can be raised or lowered. The conveyor easily folds for transport and does not have to be detached from the machine frame.
Temperature control sensors are located throughout the machine. This, coupled with the Tigercat designed operating software and telematics system, improves data access and customer support. The 6040 development also emphasised parts commonality among other Tigercat products including pumps, motors, valves and filters, simplifying parts inventory management at the dealer and end user level.
The overall machine weight has been reduced from 43,550kg to 37,650kg. Extended track frames improve load distribution on the trailer and reduce soil compaction on the ground.
For more information or to organise a demonstration please contact Onetrak on 1300 727 520.
