Bobcat Australia has released an automated slope sensor solution for rough and finish grading which the company claims is ideal for when laser sensors are not suitable.

Bobcat introduces new automatic slope sensor kit for grading

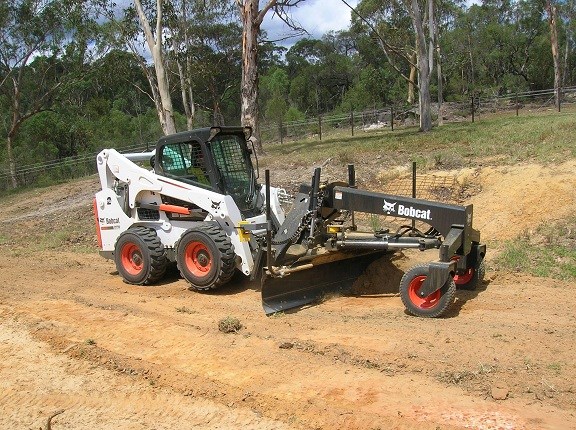

Bobcat's new automated slope sensor solution allows for grading jobs on any terrain

Bobcat says the slope/sonic automatic grade control can be used for virtually any terrain and enables operators to create an accurate cross-slope or precisely grade when laser receivers and transmitters are limited by jobsite obstacles.

The company adds that laser grading is usually limited to a flat-plane, single-slope or dual-slope surface, which allows the sonic sensor kit to overcome that issue.

The sensor kit is suitable for use on Bobcat 96" grader for operation on large frame Bobcat Loaders.

How the kit works:

A sonic tracer is placed on either side of the moldboard, over the top of the object the operator wishes to use as a reference and the blade depth to be set as needed.

A cross-slope sensor is mounted to the back of the moldboard , which moves the side of the blade opposite of the sonic tracer. It maintains the cross-slope that the operator determines.

The kit comes with a deluxe instrumentation panel which is used to control the operation of the system. The system enables the operator to set the parameters of the grading system and provides real-time information back to the operator during operation- such as distance-to-target for both elevation and slope.

The click of a button on the control handles switches the grader to automatic operation.

Bobcat adds that the system can also be limited to only creating the cross-slope in automatic mode by disabling the sonic tracer. The operator can then manually control the side of the blade on which the sonic tracer is mounted and the cross-slope sensor will automatically maintain the correct cross-slope across the blade.

Bobcat says this is especially useful when making first passes to provide a smooth surface for the sonic tracer to follow on the next pass.

The main features of the new sensor kit, according to Bobcat are:

  • Auxiliary rotation sensor and main fall sensors provide correcting information to the slop sensor when travelling up or down hills or when the blade is angled.
  • Grade - reverse: quickly change slope from positive to negative, or negative to positive.
  • Units can be displayed in metric or inches
  • Automatic mode indicator for cross slope control
  • Increment/decrement offset height of sonic tracer
  • Distance-to-target for sonic tracer
  • Zero or "rebench" sonic tracer
  • Sonic tracer can be active or inactive in auto mode.
  • Sonic tracer offset can be moved up or down.
  • Reverse grade from a positive slope to a negative slope with the push of a button.
  • System calibration control
  • Turn the sonic tracer on or off to run the slope sensor independently which allows manual control of one side of the blade while the other side maintains the required slope.

For more information on the sonic/slope sensor kit, visit Bobcat Australia's website or contact the company at bobaust@bobcat.com.au
